Report
Report defintion

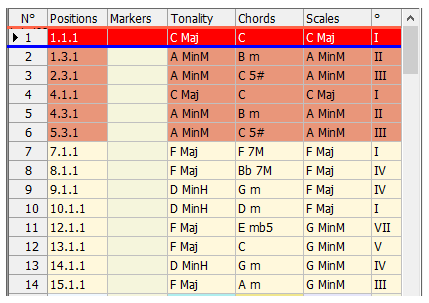

Right side view of “Hypervoicing” is called the report :
For every drag and drop of chords on the MIDI track, the Report is updated with the corresponding data: positions, tonalities, chords and default playable scales.
Scales appear in the report in the corresponding column.
"Hypervoicing" has a search engine of scales playable on chords.
Markers
The Report contains a “Marker” column . It is possible to enter free text in the cells of this column.

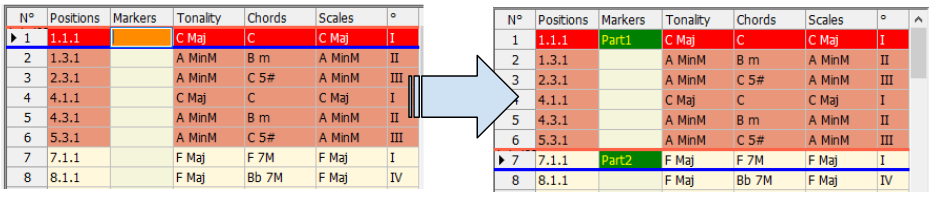

Click in a cell, enter a text, for example "Part1", then press the "Enter" key:
To clear a marker, use the "Delete" key, then press the "Enter" key:

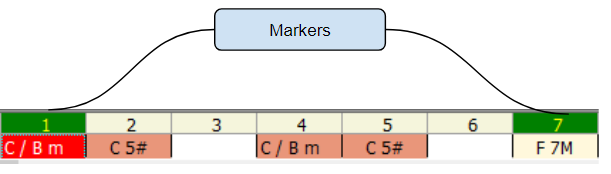

The presence of a marker is mentioned in the MIDI track main view by colorization of the concerned measures.
Use this button to export markers into a MIDI file:
Report extension
You can extend the Report by clicking on the following button:
The extension of the Report allows to know in detail the notes constituting the different musical objects of the Report: Tonalities, Chords, Scales. It is also possible to know the Greek Mode relating to the association of an Accord with its tonality.
The following buttons appear and display the notes of the corresponding musical objects:

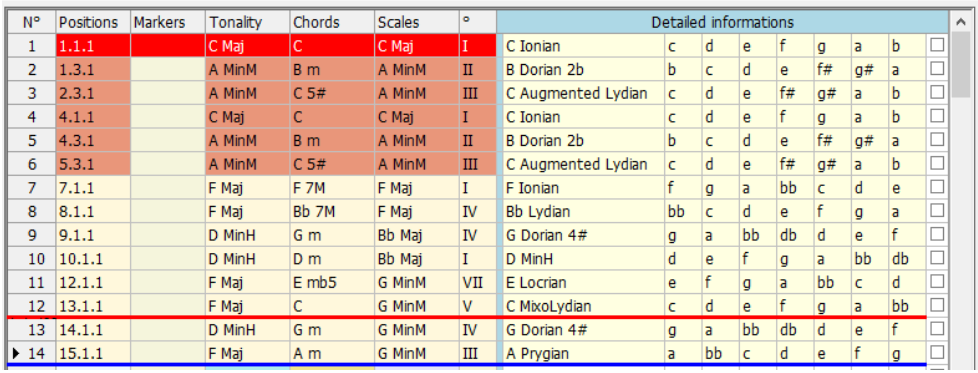

The following image shows the Extended Report with information about Greek Modes:

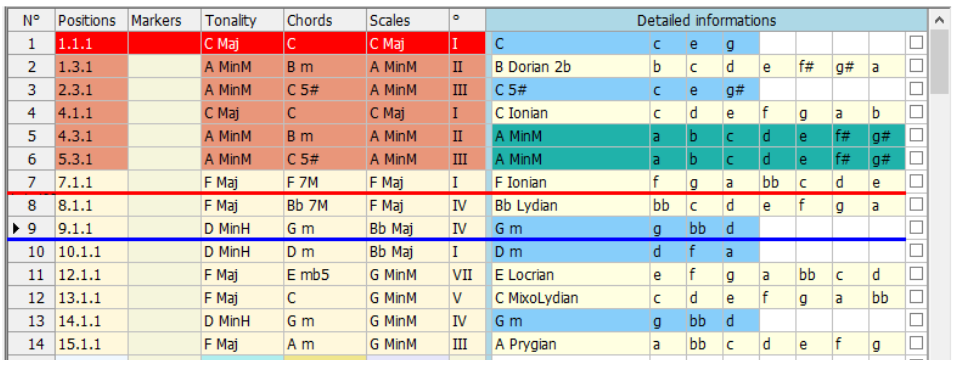

It is possible to obtain information for particular elements of the Report with ALT + Click on the element. You can display a Greek Mode by doing ALT + Click in the degree column. The following image shows objects of different natures in the extension of the report :
Of course, it is possible to listen to all the musical elements of the extension by using the shortcut CTRL + Click.
Video : Report
Video : Markers
